iXZ
MIC/INSTRUMENT AUDIO INTERFACE FOR IPAD/IPHONE/IPOD TOUCH
TASCAM’s pocket-sized iXZ turns your iPhone, iPad or iPod touch into a recording studio. Plug in a microphone, guitar or bass to interact with the latest guitar amp, sampling, recording and DJ apps.
- Device side connection terminal : 1.8" (3.5mm) 4 Pole Plug (CTIA)
- Power : 2 AA batteries (when using microphone input)
- Power consumption : 0.32W (Phantom Power 5.0mA)
- Battery Life : Approx. 15 hours (Phantom Power 5.0mA)
- Dimensions : 106(W) × 40(H) × 45(D) mm
- Weight : 93g(not including batteries)
- Switchable mic/line input
- Phantom power
- Gain control
- 1/8" headphone output
- XLR mic input
- High-impedence guitar input
- Mic input powered by two AA batteries
- Non-powered guitar input
- iXZ Package
- AA alkaline batteries ×2
- TASCAM ID registration guide
- Owner's Manual（including warranty）

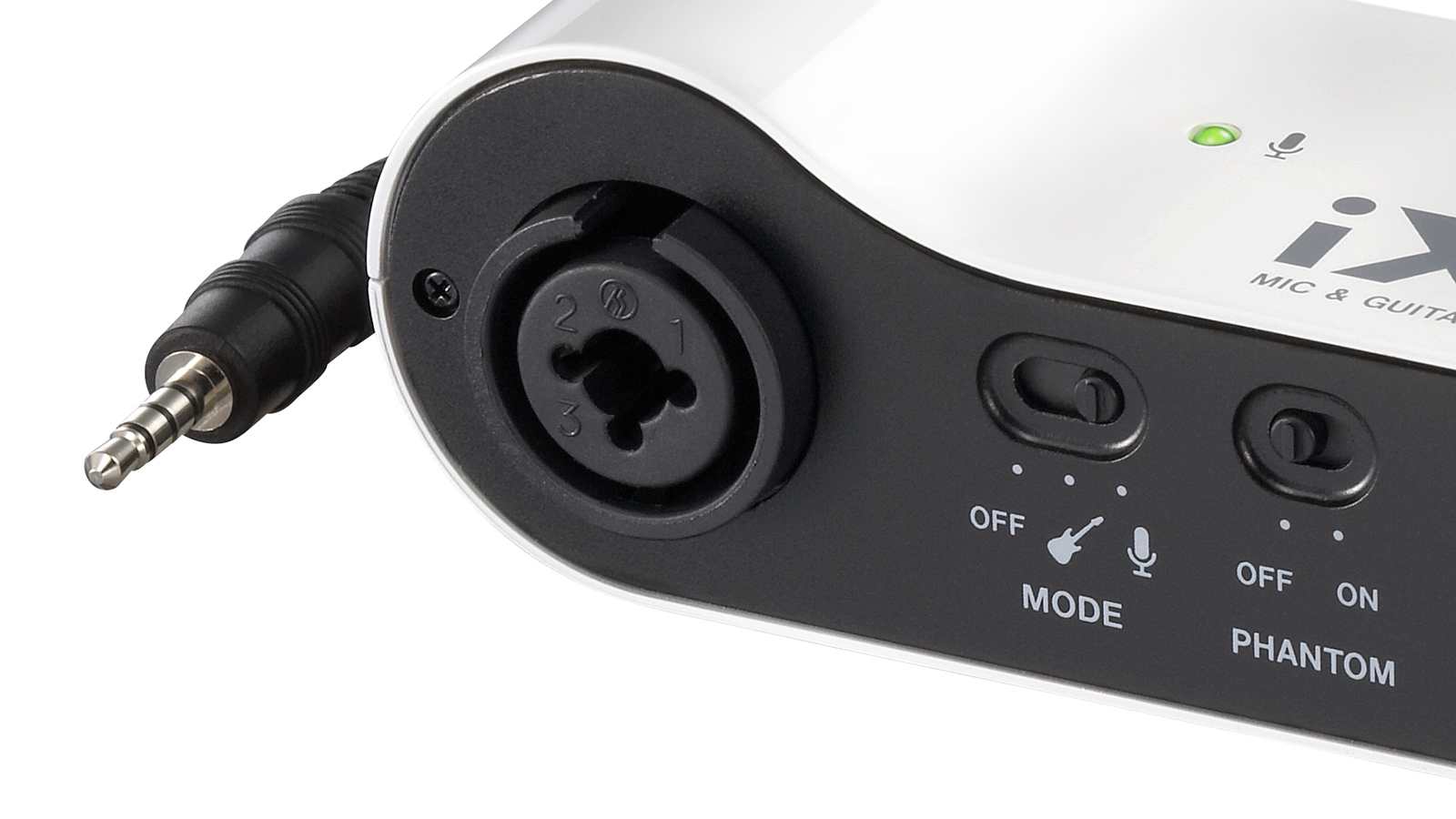

Mic or Guitar-level Input
Unlike similar recording interfaces for iOS, the input of the TASCAM iXZ can be switched between microphone-level or guitar level in. When switched to guitar level, the iXZ doesn't require any power. That makes the iXZ ideal for practicing your guitar and bass as well as recording.
Switch to Microphone level to enable the microphone preamp. Phantom power is available for powering a condenser microphone for detailed instrument or voice recording. A pair of AA batteries (included) provide hours of microphone recording.
A hardware gain knob controls the level of the input to your recording app. This gives you a quicker way to adjust the level than software controls – if your app even has one.
Headphone out/thru jack
Since the iXZ simply plugs into the headset jack of your iPhone, iPad or iPod touch, an 1/8" headphone output jack is provided on the back of the iXZ.
Features at a Glance
- Switchable mic/line input
- Phantom power
- Gain control
- 1/8" headphone output
- XLR mic input
- High-impedence guitar input
- Mic input powered by two AA batteries
- Non-powered guitar input
TASCAM's iXZ as the main interface to record all vocal tracks
