DR-10L Pro
ULTRA-COMPACT 32-BIT FLOAT AUDIO FIELD RECORDER WITH LAVALIER MIC
The DR-10L Pro is sure to carry on as the industry standard for AV creators, wedding and event capturing, field recording and more.
With the DR-10L Pros 32-bit float recording technology, you can capture a whisper, a scream, and everything in-between with impeccable fidelity, ultra-low noise, and no need to fine-tune gain levels. Support for wireless time code with Atomos products, the ability to control up to 5 units wirelessly via the app, and long battery life and generous storage capacity optimize the DR-10L Pro for professional applications.
*optional AK-BT1 needed for app control and wireless timecode
*Note : Only use AK-BT1 adapter.
This product not compatible with AK-BT2 adapter.
- Recording media : microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (64GB - 512GB)
- Power : 2 AAA batteries (Alkaline / Ni-MH / Lithium), USB bus power
- Dimensions : 53 (W) × 50.7 (H) ×21.4 (D) mm
- Weight : 65g（including battery） / 43g（not including batteries）
- Operating temperature : 0 - 40℃
- Ultra-lightweight, compact and wearable design is perfect when stealth is a priority.
- TM-10L lavalier microphone with clothing clip and windscreen included (cable length: 160cm).
- 32-bit float recording and dual AD converter technology means you’ll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels.
- Supports recording in MP3 format
- Huge storage capacity, with support for microSDXC cards up to 512GB.
- Records at least 24.5 hours on two AAA batteries*¹ for all-day video shoots.
- Optional AK-BT1 Bluetooth® adapter (sold separately) adds wireless control and synchronization.
- Free TASCAM RECORDER CONNECT app for iOS, iPadOS and Android allows you to control up to 5 units simultaneously *².
- LTC jam sync hardwired timecode with an unlimited number of DR-10L Pro units
- Wireless time code synchronization supported with compatible Atomos products such as BLUE or CONNECT series.
*¹ Lithium battery.
*² The number of devices that can be connected may vary depending on the usage environment and radio wave conditions. See All
- DR-10L Pro
- Belt clip
- USB cable (Type A – Type C)
- TM-10L : Lavalier microphone, Microphone clip, Windscreen
- Start-up guide (including warranty)
- TASCAM ID registration guide
- iZotope RX Elements download card
The Stealthiest Recorder and Mic That You'll Never See
The DR-10L Pro is ultra-compact and lightweight, the perfect solution when stealth is a priority. Fitting in the palm of your hand and weighing in at just 65 grams, this recorder is easy to hide at film shoots, weddings, stage performances, and other projects where invisibility is crucial. The included belt clip attaches easily and securely to clothing, allowing you to capture great audio without compromising your talent.
Dual ADCs and 32-bit Float Recording for Fast Setup and Worry-free Recording
The DR-10L Pro’s default 32-bit float recording mode employs dual ADCs to capture sounds across a huge dynamic range without distorting or introducing excessive noise — that means videographers can avoid having to scrap audio due to poor levels. With 32-bit float recording, there’s no need to adjust input gain levels, allowing you to set up faster and with total confidence that you’ll capture great audio in any setting.
The included TM-10L microphone captures clear, detailed audio while handling loud sound pressure levels without distorting, making it the perfect lav mic for the DR-10L Pro’s 32-bit float recording mode.

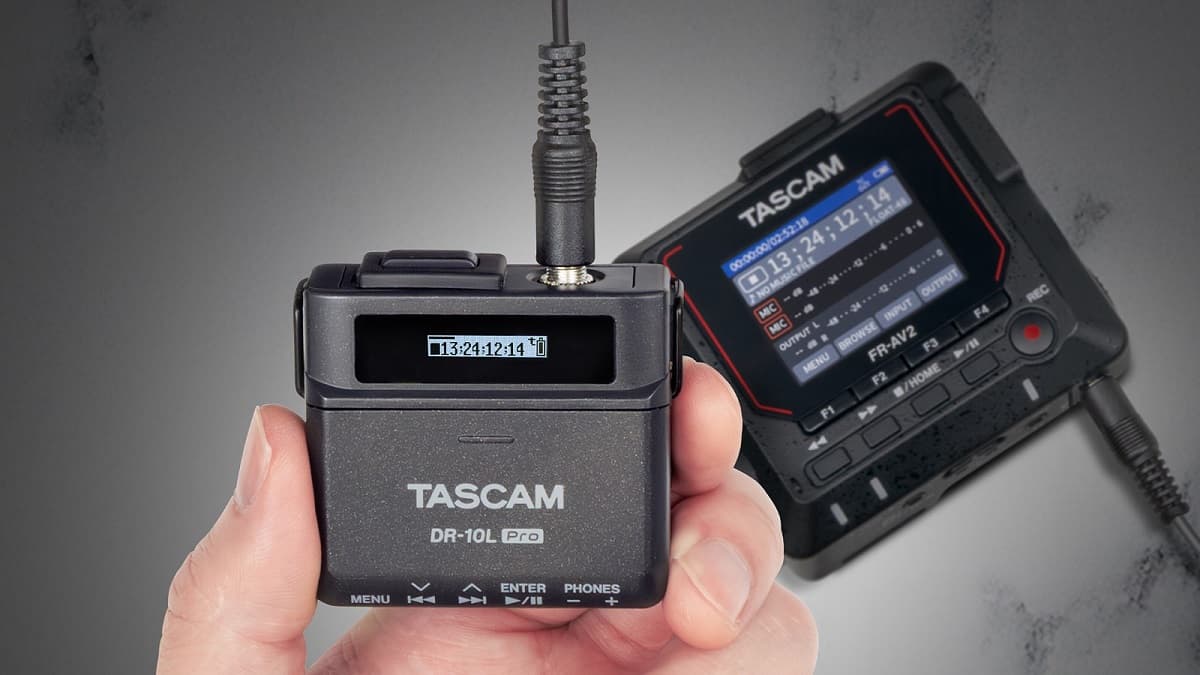

Sync Smarter, Not Harder
With Firmware V2.0, the DR-10L Pro now supports LTC jam sync - making multi-recorder timecode alignment easier than ever. Jam sync hardwired timecode with an unlimited number of DR-10L Pro units via the top-mounted 3.5mm stereo mini cable connection. No matter which timecode generator you’re using, access a world of possibilities on your terms. Seamless and universal timecode integration means faster alignment, less stress, and more time to work your magic in post.
AAA Batteries Power Long Shooting Sessions
Whether you're capturing audio from people at a wedding reception, a busy trade convention, or a lengthy ceremony, the DR-10L Pro is ready to keep recording as long as you are. Just two AAA batteries can power the DR-10L Pro personal recorder for up to 24.5 hours*, minimizing concerns over battery changes during the shoot.
In addition, files are saved approximately every 20 seconds during recording, so data loss due to unexpected power supply interruptions are kept to a minimum.
*Lithium batteries
Remotely Control up to 5 Units with the TASCAM RECORDER CONNECT App
With the optional AK-BT1 Bluetooth dongle, DR-10L Pro recorders can be controlled from iOS, iPadOS and Android devices wirelessly with the free TASCAM RECORDER CONNECT app. In addition to controlling up to five DR-10L Pro units remotely, the TASCAM RECORDER CONNECT app allows videographers to check device status and view the recorded waveforms real time. You can also use the app to name devices for easy identification, for example “Bride”, “Groom”, and so on.
Additional Features
Other features of TASCAM RECORDER CONNECT app:
Read More
Supports Wireless Time Code with Atomos Products
Read More
High-visibility OLED Display Allows You to Check Device Status Fast
Read More
Automatic File Save System
Read More
Easy to Monitor Input and Recordings
Read More
High precision clock to prevent drifts between audio and video
Read More
iZotope RX Elements Audio Repair Bundle Included
Read More
Features at a Glance
- Ultra-lightweight, compact and wearable design is perfect when stealth is a priority.
- TM-10L lavalier microphone with clothing clip and windscreen included (cable length: 160cm).
- 32-bit float recording and dual AD converter technology means you’ll never need to scrap a recording due to poor audio levels, and no need to fine-tune input levels.
- Huge storage capacity, with support for microSDXC cards up to 512GB.
- Records at least 24.5 hours on two AAA batteries*¹ for all-day video shoots.
- Optional AK-BT1 Bluetooth® adapter (sold separately) adds wireless control and synchronization.
- Free DR-10L Pro CONNECT app for iOS, iPadOS and Android allows you to control up to 5 units simultaneously *².
- LTC jam sync hardwired timecode with an unlimited number of DR-10L Pro units
- Wireless time code synchronization supported with compatible Atomos products such as BLUE or CONNECT series.
*¹ Lithium battery.
*² The number of devices that can be connected may vary depending on the usage environment and radio wave conditions.
Other Features
- Supports recording in MP3 format
- Screw lock mechanism securely connects the microphone connector to the recorder.
- Sliding recording switch mechanism makes it fast and easy to start recording, and prevents accidental operation during recording.
- Lock function disables all operations other than “recording stop” during recording.
- Automatic file closing function to prevent the loss of recorded data if the batteries run out.
- Automatic leveling and limiting prevent distortion caused by overloads.
- Low-cut filter reduces ambient hum and rumble (40Hz/80Hz/120Hz/220Hz).
- Easy-to-read organic EL display.
- Headphone output enables input monitoring and allows you to check recorded files.
- USB Type-C port enables connecting extra power supply and easy data exchange with computers.
- Belt clip included.
- Includes iZotope RX Elements audio production editing software.
TASCAM Announces the DR-10L Pro V2.0 Firmware Update
Learn More
DR-10L Pro - New Upgraded Version 1.02 of Firmware Released
Learn MoreYou might also like
Information
| Latest version info | |
| Firmware | V2.00 |
- LTC timecode synchronization is now supported.
The DR-10L Pro microphone input can be used to jam sync with a timecode generator.
For detailed instructions, refer to the Owner's Manual. - Operation stability has been improved in other ways.
- The DR-10L Pro unit's screen display may become erratic during the update process.
In such a case, however, the update is still proceeding normally, so please follow the on-screen instructions of "TASCAM DR-10L Pro Firmware Updater" without unplugging the USB cable.
- The remote control app “TASCAM DR-10L Pro CONNECT” has been renamed “TASCAM RECORDER CONNECT” to add support for the portable field recorder/timecode generator “FR-AV2”.
TASCAM RECORDER CONNECT can simultaneously control up to 5 DR-10L Pro and FR-AV2 units.
However, when shipped to consumers new from the factory, the charge could potentially be too low for this particular feature.
In this case, date and time retention can be maintained by charging the unit using the battery or USB power supply.
With a 24-hour charge, the DR-10L Pro can retain the date and time for around one month.
With a 48-hour charge the retention goes up to two months; three months with a 72-hour charge.
When charging the recorder, be sure to always have it powered on.
The secondary lithium battery cannot be properly charged if the unit is powered off.
If possible, always charge the DR-10L Pro via USB bus power for long-term date and time retention.
